High pressure die casting cell

HPDC CELL

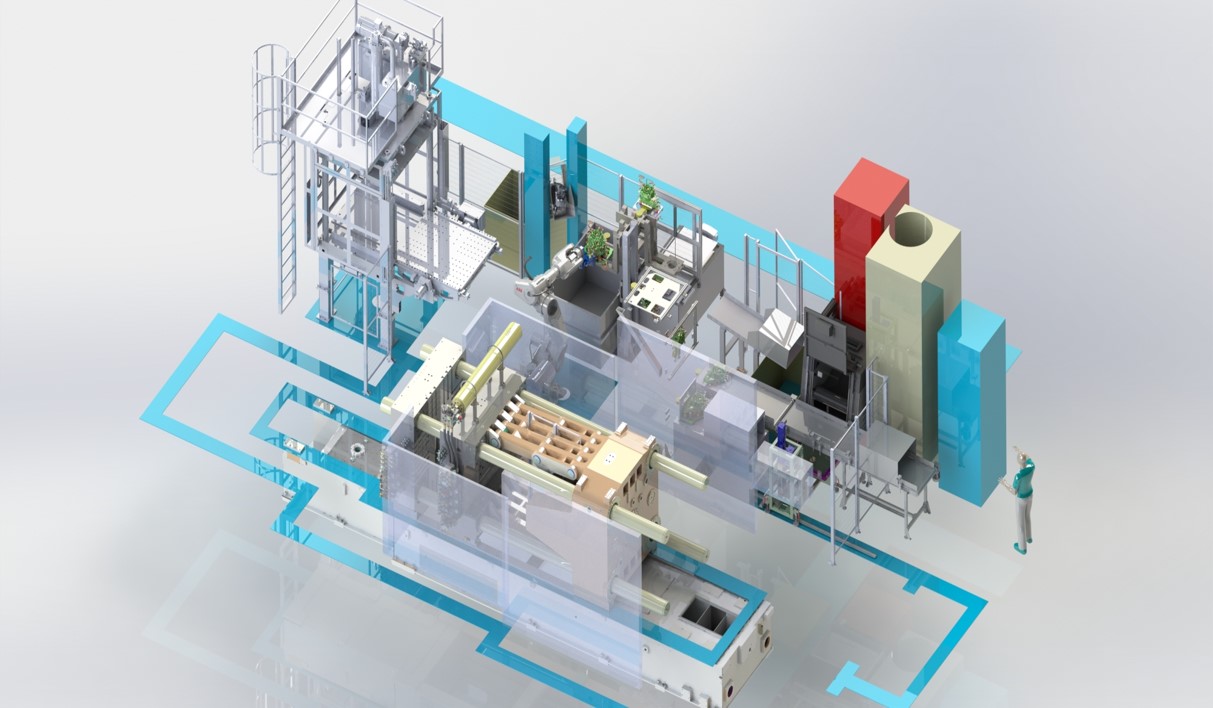

Fully automatic high pressure die casting cell. Once the moulding cycle is finished, the robot extracts the part and puts it on the cooling tank.  Then robot moves the parts to a trimming press where  feeders are cut. After that it is placed in the vacum station before entering in the shot blasting machine so is the water is removed.

AUTOMATION OF CASTING PROCESSES

Images of the real process
