Type A

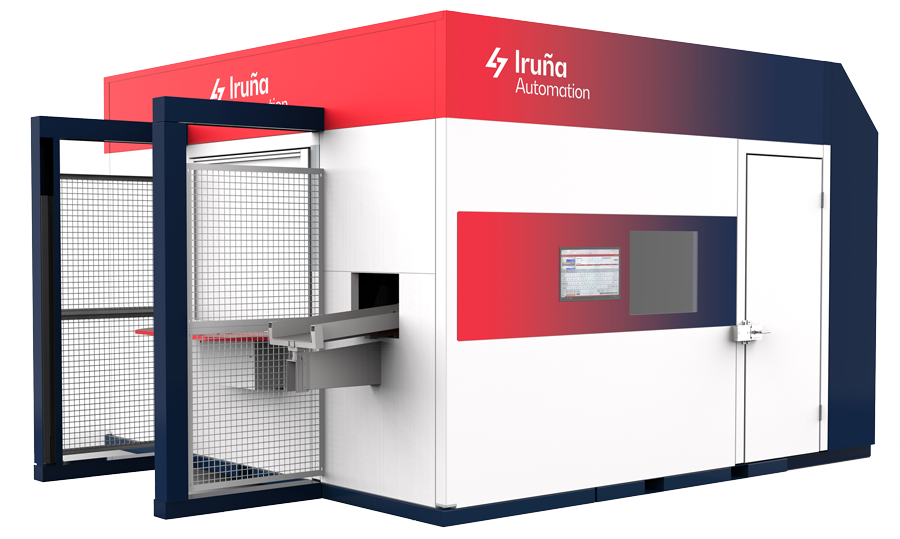

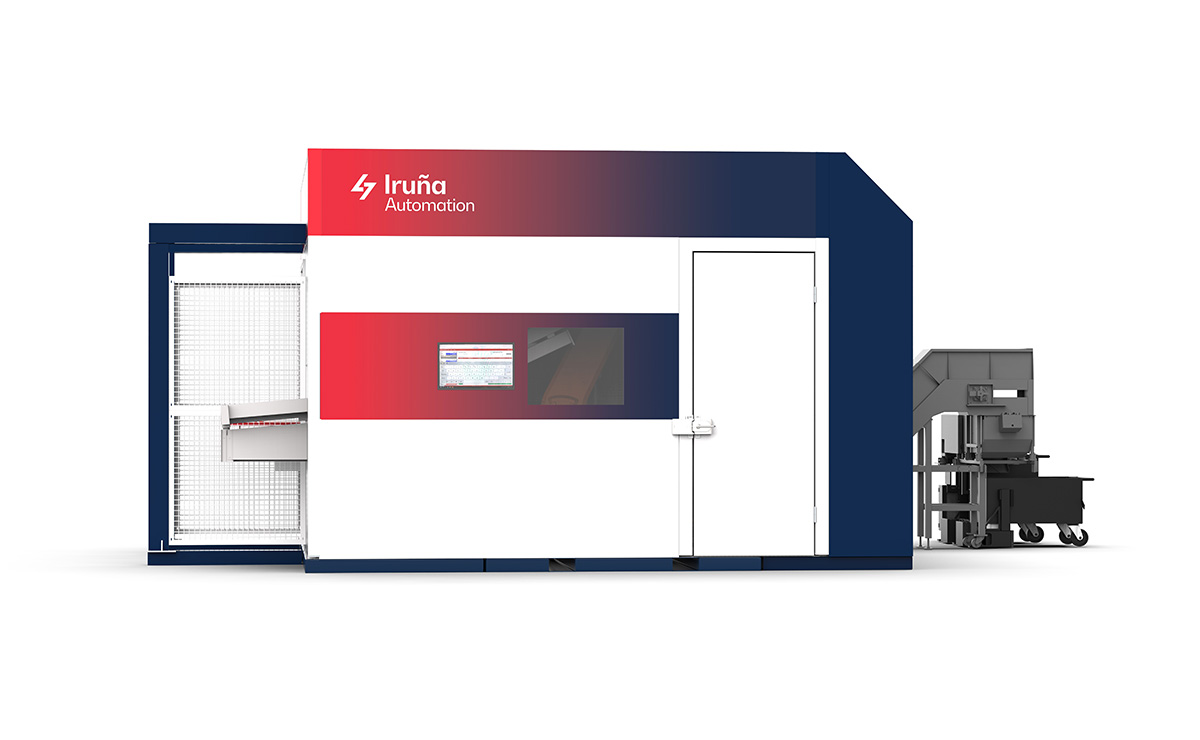

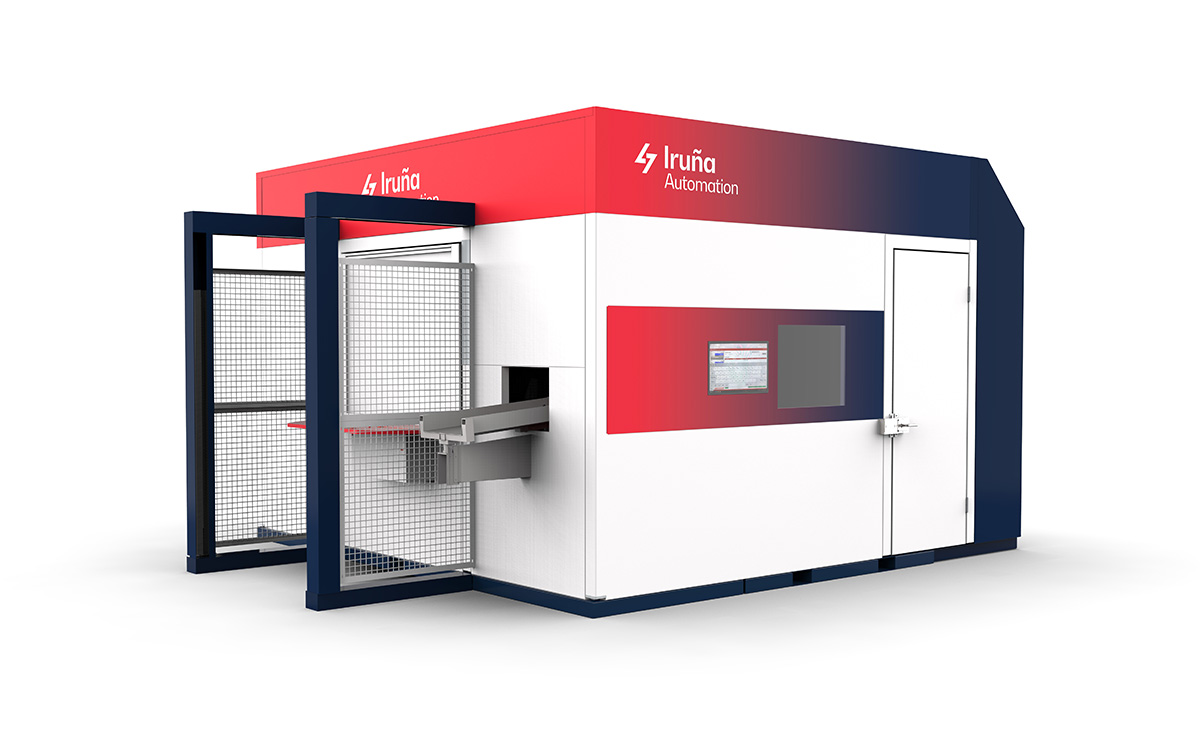

Automated finishing cell designed for high-precision cutting, machining and deburring operations, using a rotary table and robotic handling to ensure efficiency, accuracy and process control.

System overview

A finishing cell utilizes a rotary table for the systematic loading of parts, where a robot precisely picks and positions each component in front of fixed tools. This arrangement enables various finishing operations such as cutting, machining and deburring to be carried out with high efficiency and accuracy. Equipped with configurable tool stations, the cell can handle different parts as well as finishing requirements and processes. It also includes monitoring software that enables real time corrective actions.

Model Specifications

Material
Aluminium
Piece Size
400x600x200
Weight up to
50kg
Process
Cutting, machining,deburring

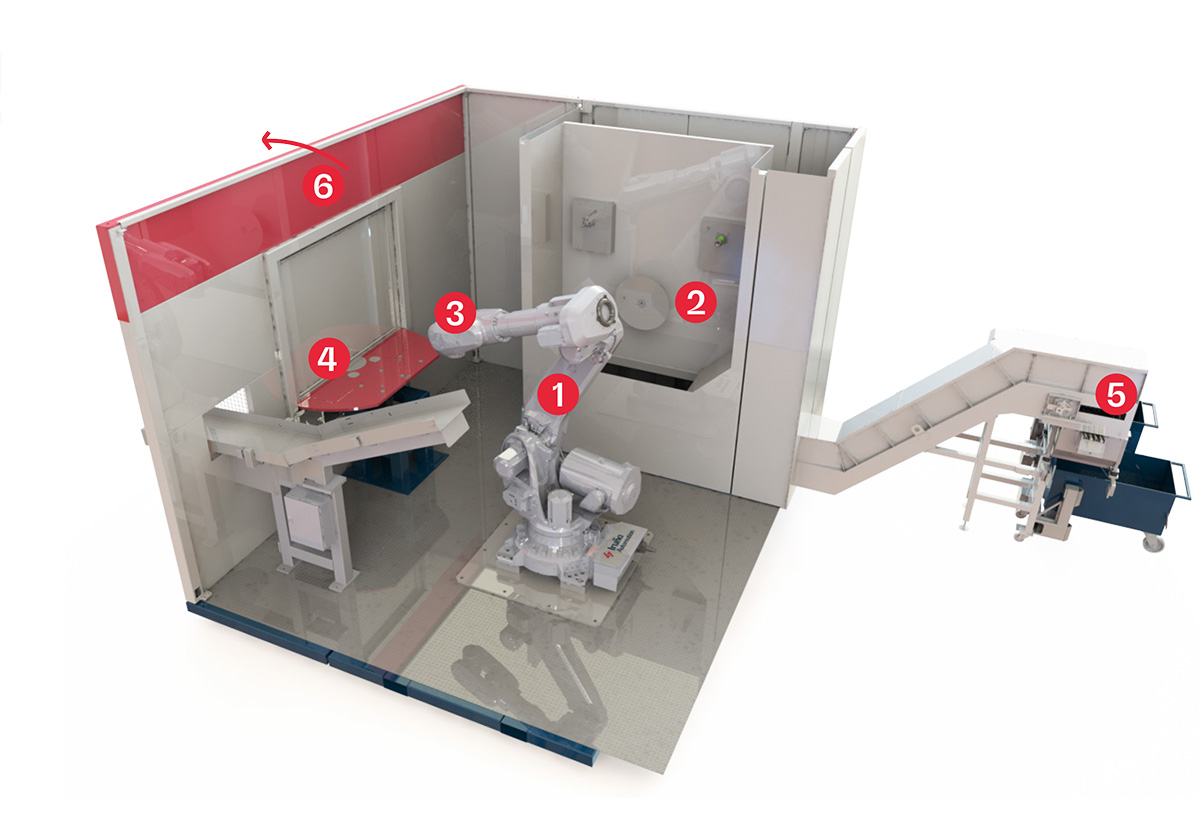

Featured accessories

1
Robot
2
Tooling station
3
Workpiece gripper
4
Turning table
5
Chip extraction system
6
2D / 3D Artificial vision
